VARILOC® PRODUCT COMPARISON
| Model | Material | Strength | Tap Holes |
Pins | Increment
Setting |
Range of Movement |
Mounting | Finish | Remote Cable Ready |
|
Steel Hinges Technical Specs |
4140 alloy steel, heat-treated |
1200 Inch lbs. 5-1 safety factor |
Yes | 416 |
10º | 220º & 360º models |
2 Round Ends | Teflon Coated |
Yes |
|
Stainless Steel Hinges Technical Specs |
303 |
500 Inch lbs. 5-1 safety factor |
Yes | 416 Stainless Steel Heat Treated |
10º | 180º, 220º |
2 Round Ends 2 Flanges Flange/Round End |
Electro- Polish |
Yes |
|
Plastic Hinges Technical Specs |
DuPont Zytelâ„¢ |
450 Inch lbs. 5-1 safety factor |
Yes | DuPont |
10º & 45º models |
220º models |
2 Square Ends | Black Std. Colors Optional |
Yes |
|
Aluminum Hinges Technical Specs |
7075-T6 Aluminum |
500 Inch lbs. 5-1 safety factor |
Yes | 416 Stainless Steel Heat Treated |
10º | 220º & 360º models |
2 Round Ends | Anodized | Yes |
Activation & Usage
Applications

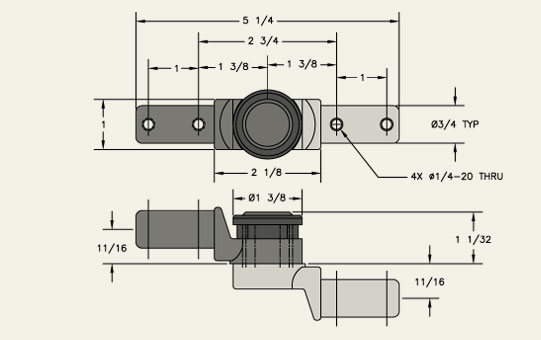

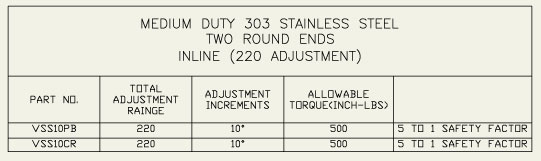

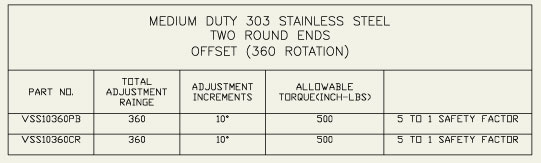

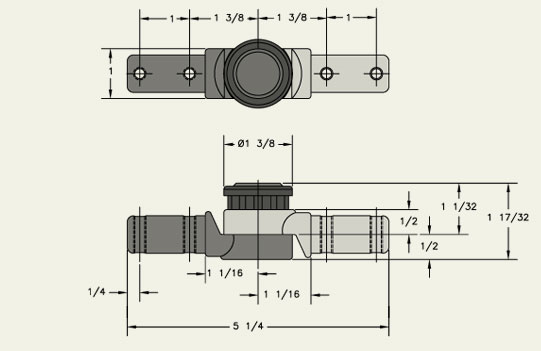

MEDIUM DUTY STAINLESS STEEL LOCKING HINGES
|
2 MOUNTING FLANGES |
FLANGE & ARMATURE |
2 ROUND ARMATURES| PRINTER FRIENDLY VERSION |   |
||||||||||
 |
|||||||||||
 |
|||||||||||
|
|||||||||||
